SIMON XTI- PROGRAMMING DURESS CODES

SIMON XTI- PROGRAMMING DURESS CODES

DURESS CODE DISARMS THE SYSTEM AND SENDS A SILENT ALARM TO REED SECURITY MONITORING STATION

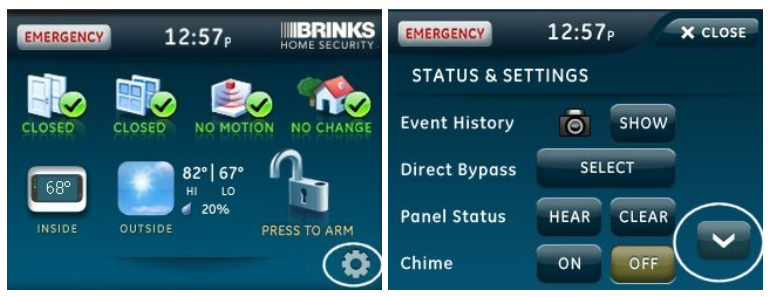

      1. Click the GEAR icon on the lower right hand side.  Use the down arrow to scroll until you see PROGRAMMING

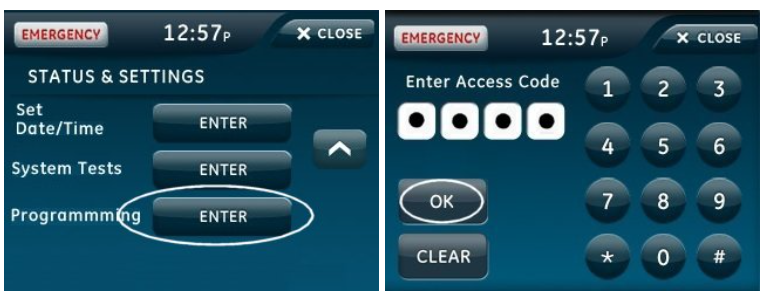

      2. Press the ENTER button and enter your MASTER CODE, then press OK

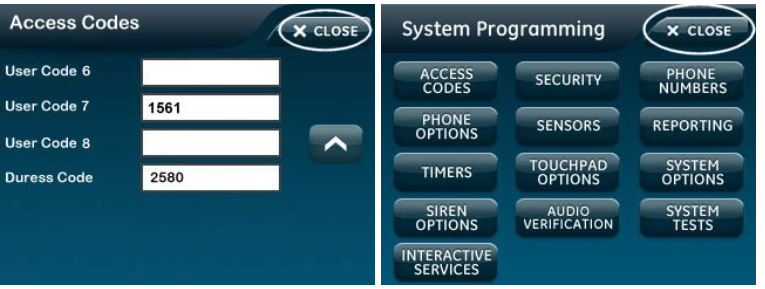

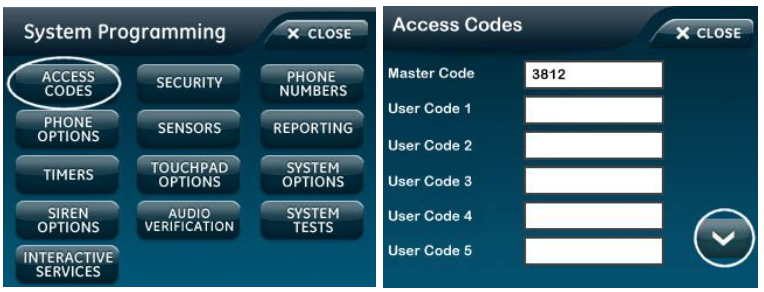

      3. Select ACCESS CODES and use the DOWN ARROW to scroll until you see DURESS CODE



      4. Press the box beside DURESS CODE - enter new code or select the DELETE option to delete the code, then PRESS SAVE



      5. Press CLOSE BUTTON twice to exit
