Simon XTi-Power Cycle/Power Down Panel
HOW TO POWER CYCLE THE PANEL

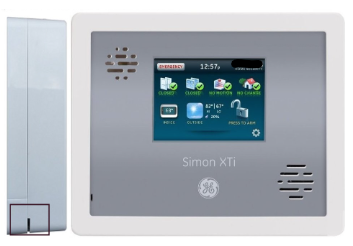

- Insert a coin into the bottom right corner slot, then twist to remove the front faceplate.

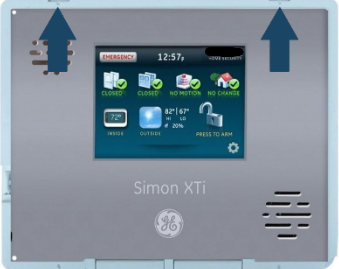

- Pry the top two tabs up, then fold down front cover.

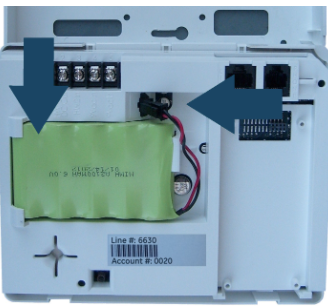

- Unplug the battery pack
4. Disconnect the AC transformer, then wait approximately 2 minutes
5. Reconnect the battery, then the AC transformer
(The panel should complete within 5 minutes)
HOW TO POWER DOWN THE PANEL
1. repeat steps 1-5 as per above but DO NOT reconnect the battery or AC transformer
