Qolsys IQ2 - Add or Remove bypass from a zone

To Bypass or Remove Bypass from a Zone:

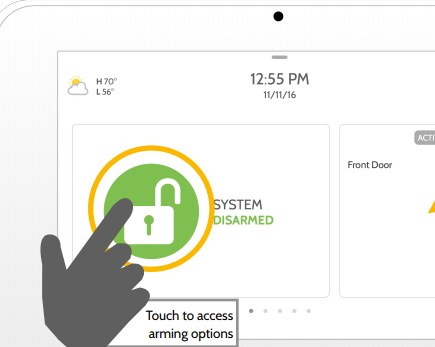

1. Press the unlocked picture to access arming options

2. When you see the "Arm Away" and the "Arm Stay" options, press the arrow key on the right hand side of the display screen to see the sensor status

3. See your programmed zones on the right hand side of the display.  Under "BYPASS" select the sensor you wish to bypass (check mark) or remove the check mark beside the zone you need to remove the bypass from.

4. Select the arming option you wish to use to arm your system.
