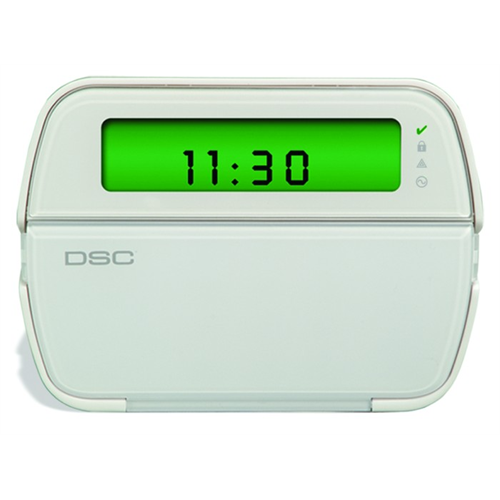

DSC - Non-alpha Keypad, Set Time/Date

DSC - Non-alpha Keypad, Set Time/Date


Reed Logo
1) Press * followed by 6.
2) Enter in your master access code. (the code you use to disarm the system)
Please note the master code is the only code that can make changes, A user code will not be able to make changes.
3) Press 1
4) Enter in the Hour, minute, Month, Day, Year.   Ex: 0930051515 for 9:30 AM May 15th, 2015
Please note that the time needs to be programmed as a 24hr clock and enter two digits for each value.
Example for Dec 28th 1988 (12/28/88)
5) After you have entered in the time and date press the # button 3 times and that will get you to the main screen.

***!!!***You have entered the time and date on your Keypad***!!!***
