Simon XTi - Reboot/Power Cycle

Simon XTi - Reboot/Power Cycle

If your Simon XTi has stopped responding, often a quick restart or reboot may resolve the issue. The following is a simple procedure that take about 5 minutes to complete:

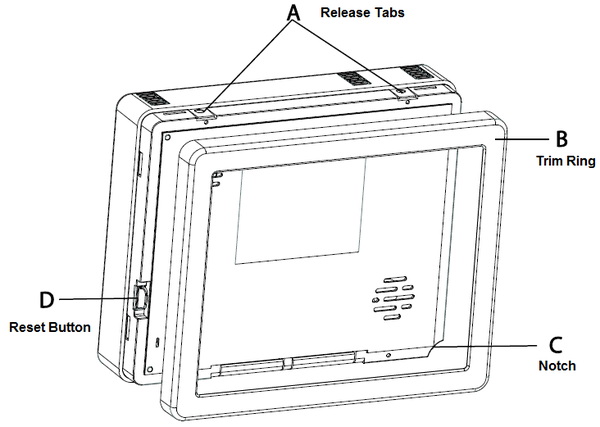

  1. Carefully pull the trim ring (B) off the edges of your panel. (Use notch, C, in lower right to start trim removal)
  2. Press and immediately release the 'Reset Button' on the left side (Button D, on lower left) **DO NOT HOLD BUTTON (see warning at bottom)**
  3. Place the trim ring back on your system

DO NOT HOLD DOWN RESET BUTTON. JUST PRESS AND IMMEDIATELY RELEASE.
Holding down the button may reset all settings to factory default and will require a billable onsite service visit to reprogram your system
.
