GE/Interlogix Sensors - Replacement Battery Guide
Below is a chart of the various sensors used with GE/ITI systems (predominantly the Simon series of alarm systems). Included is the Sensor Type (or typical use), Part #/Description (mostly used by dealers), Voltage, Type (of battery used), Quantity (needed), and Picture (of the sensor; can be clicked to enlargen image). While some battery types may appear identical (typically the coin type batteries, CR20xx), it is important to use the correct type of battery to ensure the sensor works correctly and is not damaged.
| Sensor Type | Part # / Description | Voltage | Type | Quantity | Picture | ||||

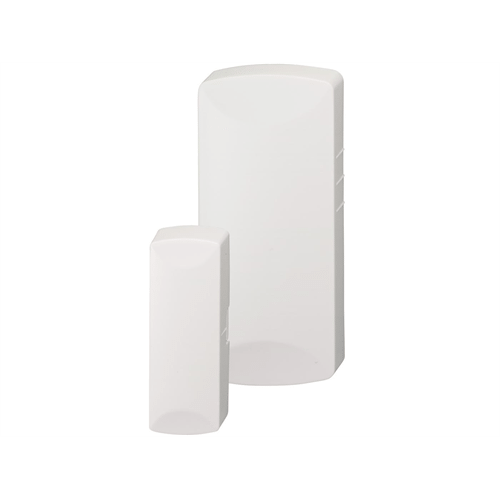

| Door / Window | 60-670-95 -- GE Wireless SAW Door-Window Sensor NX450 | 1.5v | AAA | 2 | |||||
| Door / Window | TX-E201 -- Door/Window Sensor 319.5MHz | 3v | CR2032 | 1 | |||||
| Door / Window | TX-E231 -- Door/Window Sensor with External Contact Input | 3v | CR2032 | 1 | |||||
| Door / Window | TX-E251 -- Long Range Door/Window Sensor | 3v | CR2 | 1 | |||||
| Door / Window | TX-1012-01-1 -- Micro Door/Window Sensors | 3v | CR2032 | 1 | |||||
| Door / Window | TX+DWS -- TX+ Wireless Door/ Window Sensor | 3v | CR2032 | 2 | |||||
| Door / Window | 60-362N-10-319.5 -- Wireless Door/Window Sensors Crystal Transmitter | 3v | CR123A | 1 | |||||
| Door / Window | TX-E221 -- Recessed Door/Window Sensor | 3v | CR2 | 1 | |||||
| Garage Door (Tilt) | TX-E401 -- Garage Door Tilt Sensor | 3v | CR123A | 1 | |||||
| Motion | 60-807-95 -- Indoor Wireless Pet Immune SAW PIR Detector | 1.5v | AAA | 2 | |||||
| Motion | TX-E721 -- Indoor Wireless Pet Immune PIR Detector | 3v | CR123A | 1 | |||||

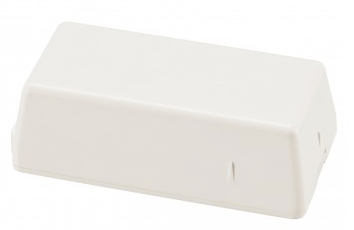

| Shock | 60-886-95 -- Learn Mode Shock Sensor | 3v | CR123A | 1 | |||||
| Glassbreak | 60-873-95 -- ShatterPro Glassbreak Sensor | 3v | CR123A | 2 | |||||
| Image | 600-9400-IMAG -- Image Sensor | 1.5V | Lithium AA | 2 | |||||
| Flood / Freeze | TX-E611 -- Flood & Freeze Sensor | 3v | CR2450 | 1 | |||||
| Flood | 60-744-95 -- Water Sensor SAW 319.5 MHz | 1.5 | AAA | 2 | |||||
| Freeze | 60-742-95 -- Freeze Sensor SAW 319.5 MHz | 1.5 | AAA | 2 | |||||

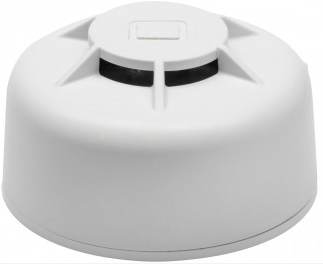

| Smoke | TX-6010-01-1 -- ESL Supervised Wireless Smoke Alarm | 3v | CR123A | 2 | |||||
| Heat | HDX-xxx --- Wireless Rate of Rise Heat Sensor | 3v | CR123A | 1 | |||||
| Carbon Monoxide | TX-6310-01-1 -- Wireless Carbon Monoxide Alarm | 1.5V | AA | 3 | |||||

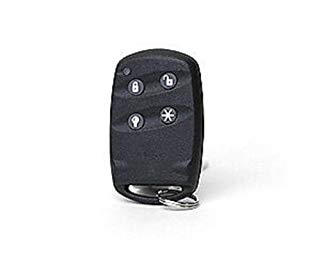

| Keyfob | 60-659-95 -- 4-Button Keyfob | 12v | A23 | 1 | |||||
| Keyfob | 600-1064-95 -- 4-Button Keyfob | 3v | CR2032 | 1 | |||||
| Keyfob | TX 5003-01 -- 4-Button Slimline Keyfob | 3v | CR2025 | 1 | |||||

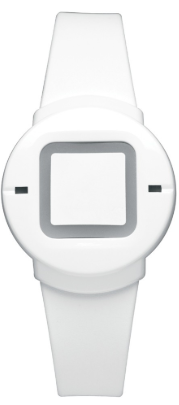

| Panic | TX-4200-01-1 -- Wireless Personal Panic Device | 3v | CR1632 | 1 |
