DSC Power Series - Non-Alpha keypad, Manage user codes

DSC Power Series - Non-Alpha keypad, Manage user codes

Reed Logo





Please Note that 40 is your master code.
For a PC 1616 you have 1-48 user slots
For a PC 1832 you have 1-72 user slots
For a PC 1864 you have 1-95 user slots
Adding a user code

1) Press the * button followed by 5
2) Enter your system’s master code (Disarm code) If you hear 3 quick beeps you are in programming. If you hear a long beep, The code you have entered is not the master code.
    Note: Only the master code can make changes. User codes can only arm and disarm.

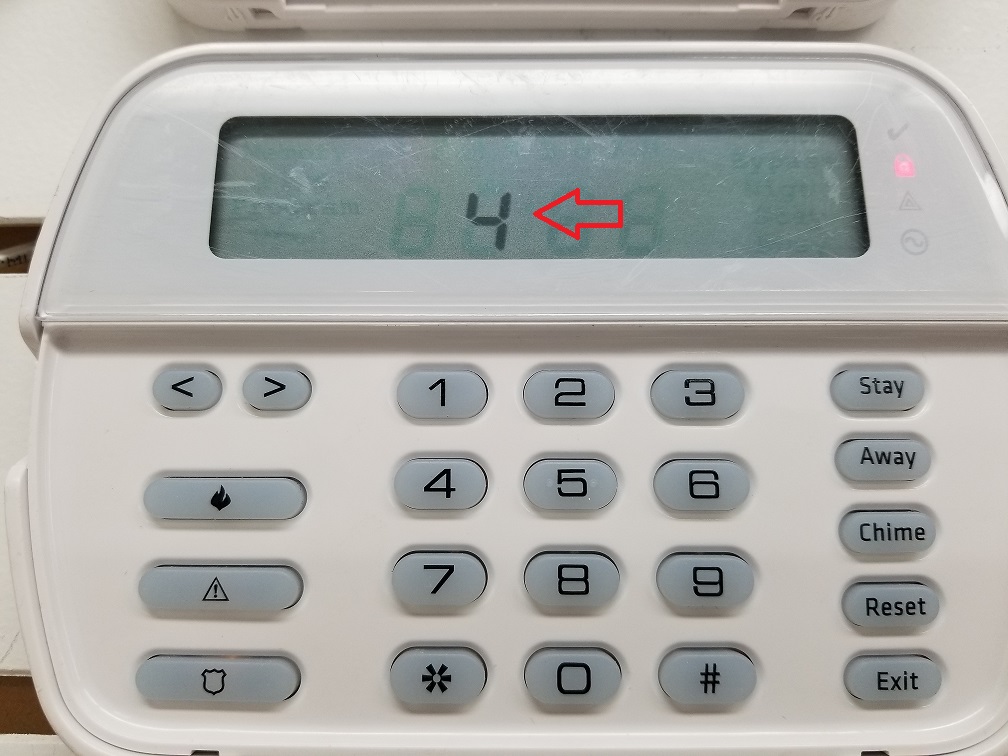

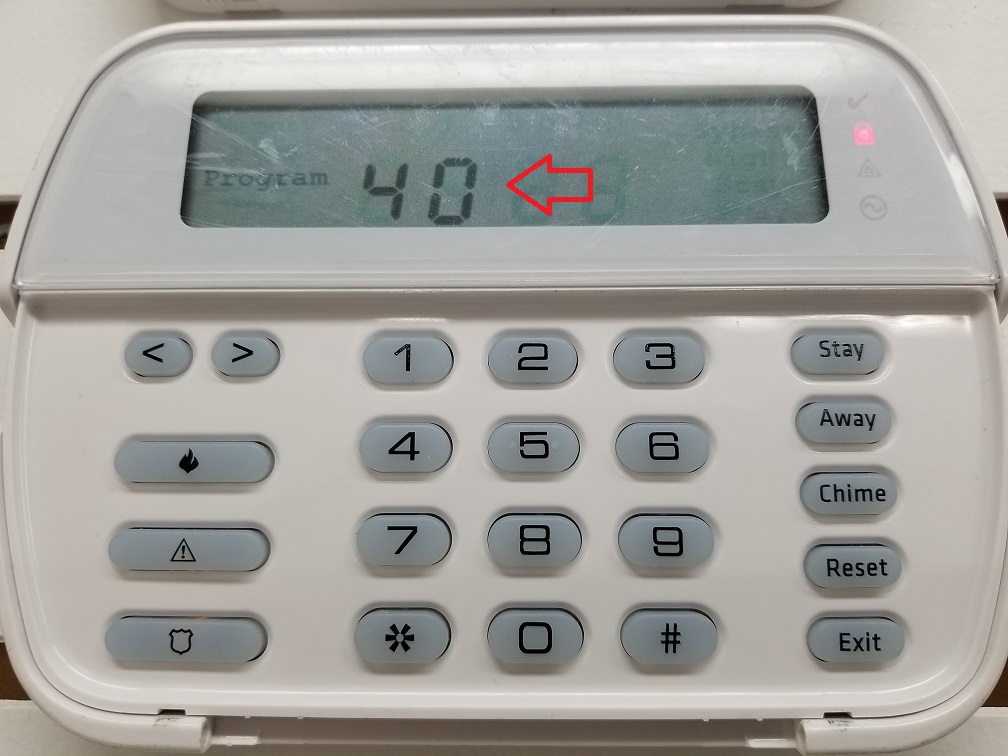

3) You will see program and numbers flashing to indicate what user codes are programmed as of right now, (example 3,4,40. Stating that user code 03,04 and 40 are programmed)

4) Select the two digit user that is available next to program. ( Example: As you saw in our last example 3,4 and 40 were flashing. Our next available user code to program is 1 or 2. For user 2 you would press 02,)
5) Use the number keys to enter the four digit user code you want for that user.
6) When programming is complete you can enter another 2 digit for another user or Press # 3 times to get to your main screen.




Changing user code

1) Press the * button followed by 5
2) Enter your system’s master code (Disarm code) If you hear 3 quick beeps you are in programming. If you hear a long beep, The code you have entered is not the master code.
    Note: Only the master code can make changes. User codes can only arm and disarm.
3) You will see program and numbers flashing to indicate what user codes are programmed as of right now, (example 3,4,40. Stating that user code 03,04 and 40 are programmed)


4) Select the two digit user that you are wanting to change. ( Example: As you saw in our last example 3,4 and 40 were flashing For user 3 you would press 03)
5) Use the number keys to enter the new four digit user code you want for that user.
6) When programming is complete you can enter another 2 digit for another user or Press # 3 times to get to your main screen.

Deleting a user code


1) Press the * button followed by 5
2) Enter your system’s master code (Disarm code) If you hear 3 quick beeps you are in programming. If you hear a long beep, The code you have entered is not the master code.
    Note: Only the master code can make changes. User codes can only arm and disarm.
3) You will see program and numbers flashing to indicate what user codes are programmed as of right now, (example 3,4,40. Stating that user code 03,04 and 40 are programmed)
4) Select the two digit user that you are wanting to delete. ( Example: As you saw in our last example 3,4 and 40 were flashing For user 3 you would press 03)
5) Press * this will delete the code you are on.
6) When programming is complete you can enter another 2 digit for another user or Press # 3 times to get to your main screen.
