DSC - Power G - Changing Door/Window Contact Batteries

DSC - Power G - Changing Door/Window Contact Batteries

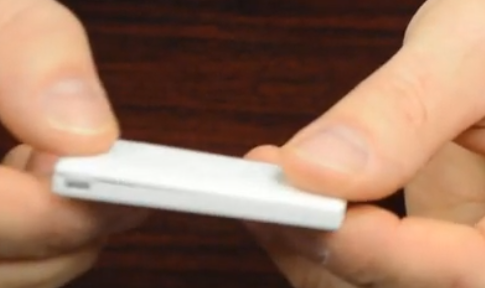

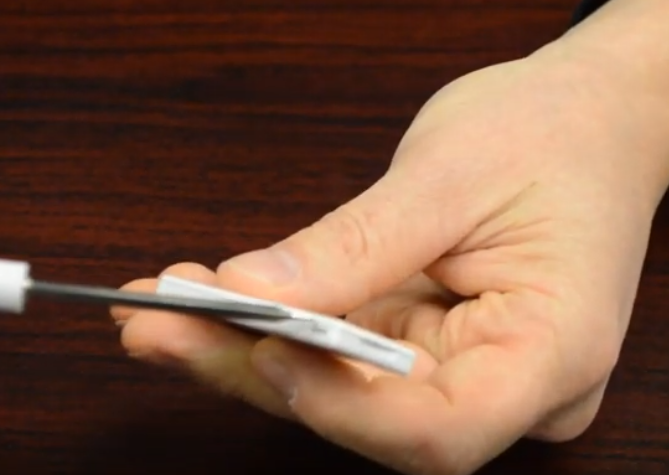

To change the batteries on your Power G door contact, use a small flat head screw driver insert into the side slats (gently twist to open)

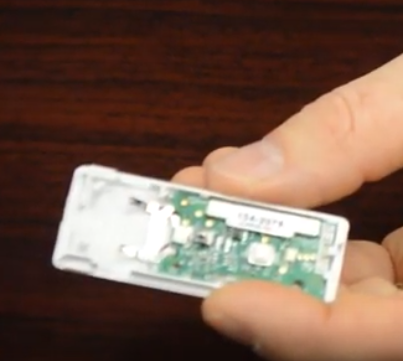

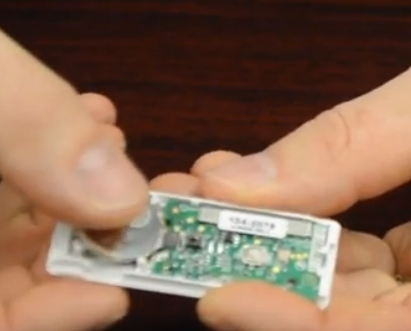

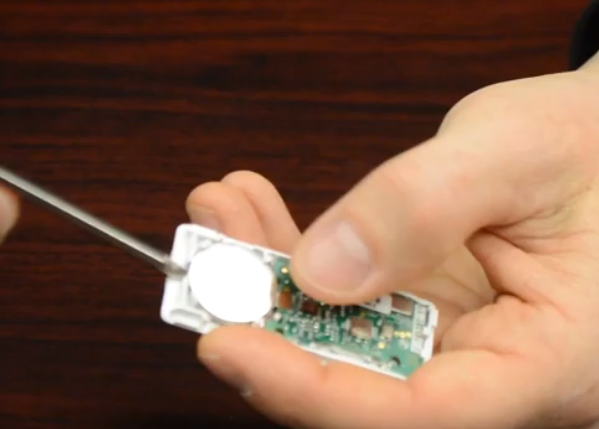

Use the screw driver to pop the battery out of place

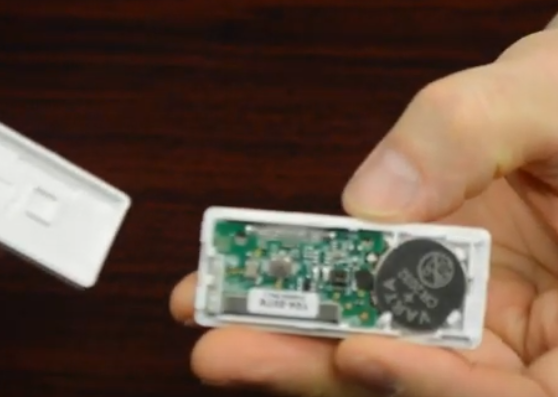

The device takes CR2032 batteries which can be purchased anywhere batteries are sold . Insert new battery with writing face up and snap back into place


Replace cover, snap into place and ensure it is aligned and closed securely to avoid any tamper notifications.

You are done!  If you require any further assistance please call our support desk at 306-653-3200 option 3 or email support@reedsecurity.ca
